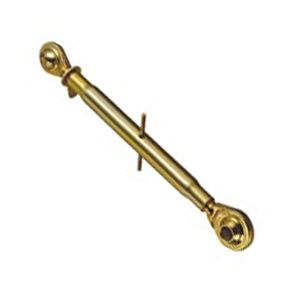

Top Link Assemblies-BE-TLA-001

Top Link Assemblies
Enlrage View / Detail

Top Link Assemblies

Top Link Assemblies

Top Link Assemblies

technical spacification
CODE CAT-D1-D2 PIPE L1 THREAD MIN MAX
Top Link Assemblies-BE-TLA-001/1 0 - 0 7.1 / 2" 3 / 4 UNC 11" 16.3 / 8"
Top Link Assemblies-BE-TLA-001/2 0 - 0 9.3 / 4" 3 / 4 UNC 13.3 / 8" 18.5 / 8"
Top Link Assemblies-BE-TLA-001/3 1 - 1 7" 1.1 / 8 UNC 11.5 / 8" 14.3 / 4"
Top Link Assemblies-BE-TLA-001/4 1 - 2 7" 1.1 / 8 UNC 11.3 / 4" 15"
Top Link Assemblies-BE-TLA-001/5 2 - 2 7" 1.1 / 8 UNC 12" 15.1 / 8"
Top Link Assemblies-BE-TLA-001/6 1 - 1 9" 1.1 / 8 UNC 13.5 / 8" 18.3 / 4"
Top Link Assemblies-BE-TLA-001/7 1 - 2 9" 1.1 / 8 UNC 13.3 / 4" 19"
Top Link Assemblies-BE-TLA-001/8 2 - 2 9" 1.1 / 8 UNC 14" 19.1 / 4"
Top Link Assemblies-BE-TLA-001/9 1 - 1 11.1 / 4" 1.1 / 8 UNC 16" 24"
Top Link Assemblies-BE-TLA-001/10 1 - 2 11.1 / 4" 1.1 / 8 UNC 16.3 / 8" 24.1 / 4"
Top Link Assemblies-BE-TLA-001/11 2 - 2 11.1 / 4" 1.1 / 8 UNC 16.1 / 2" 24.3 / 8"
Top Link Assemblies-BE-TLA-001/12 1 - 1 13" 1.1 / 8 UNC 17.1 / 2" 26.3 / 4"
Top Link Assemblies-BE-TLA-001/13 1 - 2 13" 1.1 / 8 UNC 17.3 / 4" 27"
Top Link Assemblies-BE-TLA-001/14 2 - 2 13" 1.1 / 8 UNC 18.1 / 8" 27.1 / 8"
Top Link Assemblies-BE-TLA-001/15 1 - 1 14.1 / 2" 1.1 / 8 UNC 19" 27"
Top Link Assemblies-BE-TLA-001/16 1 - 2 14.1 / 2" 1.1 / 8 UNC 19.1 / 2" 27.1 / 8"
Top Link Assemblies-BE-TLA-001/17 2 - 2 14.1 / 2" 1.1 / 8 UNC 20" 31.1 / 2"
Top Link Assemblies-BE-TLA-001/18 1 - 1 16" 1.1 / 8 UNC 20.1 / 2" 28"
Top Link Assemblies-BE-TLA-001/19 1 - 2 16" 1.1 / 8 UNC 20.3 / 4" 28.3 / 8"
Top Link Assemblies-BE-TLA-001/20 2 - 2 16" 1.1 / 8 UNC 21" 32.1 / 2"
Top Link Assemblies-BE-TLA-001/21 1 - 1 17.1 / 4" 1.1 / 8 UNC 21.5 / 8" 29.3 / 8"
Top Link Assemblies-BE-TLA-001/22 1 - 2 17.1 / 4" 1.1 / 8 UNC 22" 29.1 / 2"
Top Link Assemblies-BE-TLA-001/23 2 - 2 17.1 / 4" 1.1 / 8 UNC 22.1 / 4" 33.7 / 8"
Top Link Assemblies-BE-TLA-001/24 1 - 1 20" 1.1 / 8 UNC 24.3 / 8" 32"
Top Link Assemblies-BE-TLA-001/25 1 - 2 20" 1.1 / 8 UNC 24.3 / 4" 32.1 / 4"
Top Link Assemblies-BE-TLA-001/26 2 - 2 20" 1.1 / 8 UNC 25" 36.3 / 8"
Top Link Assemblies-BE-TLA-001/27 1 - 1 24" 1.1 / 8 UNC 28.1 / 2" 36"
Top Link Assemblies-BE-TLA-001/28 1 - 2 24" 1.1 / 8 UNC 28.3 / 4" 36.1 / 4"
Top Link Assemblies-BE-TLA-001/29 2 - 2 24" 1.1 / 8 UNC 28. 7 / 8" 40.1 / 2"
Top Link Assemblies-BE-TLA-001/30 2 - 2 15" 1.1 / 4 UNC 20" 30.7 / 8"
Top Link Assemblies-BE-TLA-001/31 2 - 2 19" 1.1 / 4 UNC 24" 35.1 / 4"

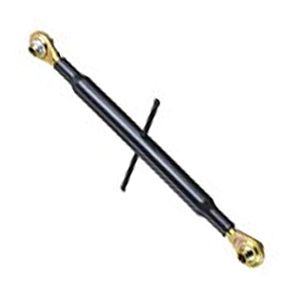

Top Link Assemblies-BE-TLA-002

Top Link Assemblies
Enlrage View / Detail

Top Link Assemblies

Top Link Assemblies

Top Link Assemblies

technical spacification
CODE CAT-D1-D2 PIPE L1 THREAD MIN MAX
Top Link Assemblies-BE-TLA-002/1 1 - 1 180 M22 x 2.5 290 440
Top Link Assemblies-BE-TLA-002/2 1 - 1 220 M22 x 2.5 330 480
Top Link Assemblies-BE-TLA-002/3 1 - 1 230 M22 x 2.5 340 490
Top Link Assemblies-BE-TLA-002/4 1 - 1 300 M22 x 2.5 410 560
Top Link Assemblies-BE-TLA-002/5 1 - 1 280 M22 x 2.5 390 540

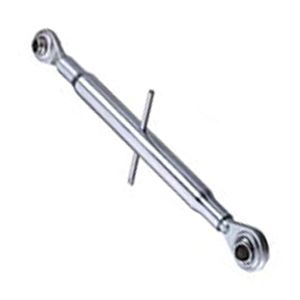

Top Link Assemblies-BE-TLA-003

Top Link Assemblies
Enlrage View / Detail

Top Link Assemblies

Top Link Assemblies

Braccio 3 Punto Completo - THREAD M27 X 3

technical spacification
CODE CAT-D1-D2 PIPE L1 THREAD MIN MAX
Top Link Assemblies-BE-TLA-003/1 1 - 1 275 M27 X 3 395 625
Top Link Assemblies-BE-TLA-003/2 2 - 2 275 M27 X 3 395 645
Top Link Assemblies-BE-TLA-003/3 1 - 1 320 M27 X 3 440 670
Top Link Assemblies-BE-TLA-003/4 1 - 2 320 M27 X 3 440 680
Top Link Assemblies-BE-TLA-003/5 2 - 2 320 M27 X 3 440 690
Top Link Assemblies-BE-TLA-003/6 1 - 1 350 M27 X 3 470 700
Top Link Assemblies-BE-TLA-003/7 1 - 2 350 M27 X 3 470 710
Top Link Assemblies-BE-TLA-003/8 2 - 2 350 M27 X 3 470 720
Top Link Assemblies-BE-TLA-003/9 1 - 1 370 M27 X 3 490 720
Top Link Assemblies-BE-TLA-003/10 1 - 2 370 M27 X 3 490 730
Top Link Assemblies-BE-TLA-003/11 2 - 2 370 M27 X 3 490 740
Top Link Assemblies-BE-TLA-003/12 1 - 1 380 M27 X 3 500 730
Top Link Assemblies-BE-TLA-003/13 1 - 2 380 M27 X 3 500 740
Top Link Assemblies-BE-TLA-003/14 2 - 2 380 M27 X 3 500 750
Top Link Assemblies-BE-TLA-003/15 1 - 1 400 M27 X 3 520 750
Top Link Assemblies-BE-TLA-003/16 1 - 2 400 M27 X 3 520 760
Top Link Assemblies-BE-TLA-003/17 2 - 2 400 M27 X 3 520 770
Top Link Assemblies-BE-TLA-003/18 1 - 1 430 M27 X 3 550 780
Top Link Assemblies-BE-TLA-003/19 1 - 2 430 M27 X 3 550 790
Top Link Assemblies-BE-TLA-003/20 2 - 2 430 M27 X 3 550 800
Top Link Assemblies-BE-TLA-003/21 1 - 1 450 M27 X 3 570 800
Top Link Assemblies-BE-TLA-003/22 1 - 2 450 M27 X 3 570 810
Top Link Assemblies-BE-TLA-003/23 2 - 2 450 M27 X 3 570 820
Top Link Assemblies-BE-TLA-003/24 1 - 1 470 M27 X 3 590 820
Top Link Assemblies-BE-TLA-003/25 1 - 2 470 M27 X 3 590 830
Top Link Assemblies-BE-TLA-003/26 2 - 2 470 M27 X 3 590 840
Top Link Assemblies-BE-TLA-003/27 1 - 1 500 M27 X 3 620 850
Top Link Assemblies-BE-TLA-003/28 1 - 2 500 M27 X 3 620 860
Top Link Assemblies-BE-TLA-003/29 2 - 2 500 M27 X 3 620 870
Top Link Assemblies-BE-TLA-003/30 2 - 2 550 M27 X 3 670 920
Top Link Assemblies-BE-TLA-003/31 2 - 2 570 M27 X 3 690 940

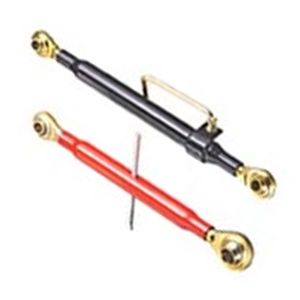

Top Link Assemblies-BE-TLA-004

PTO PIns
Enlrage View / Detail

PTO PIns

PTO PIns

Braccio 3 Punto Completo - THREAD M27 X 3

technical spacification
CODE CAT-D1-D2 PIPE L1 THREAD MIN MAX
Top Link Assemblies-BE-TLA-004/1 1 - 1 275 M27 X 3 395 625
Top Link Assemblies-BE-TLA-004/2 2 - 2 275 M27 X 3 395 645
Top Link Assemblies-BE-TLA-004/3 1 - 1 320 M27 X 3 440 670
Top Link Assemblies-BE-TLA-004/4 1 - 2 320 M27 X 3 440 680
Top Link Assemblies-BE-TLA-004/5 2 - 2 320 M27 X 3 440 690
Top Link Assemblies-BE-TLA-004/6 1 - 1 350 M27 X 3 470 700
Top Link Assemblies-BE-TLA-004/7 1 - 2 350 M27 X 3 470 710
Top Link Assemblies-BE-TLA-004/8 2 - 2 350 M27 X 3 470 720
Top Link Assemblies-BE-TLA-0049 1 - 1 370 M27 X 3 490 720
Top Link Assemblies-BE-TLA-004/10 1 - 2 370 M27 X 3 490 730
Top Link Assemblies-BE-TLA-004/11 2 - 2 370 M27 X 3 490 740
Top Link Assemblies-BE-TLA-004/12 1 - 1 380 M27 X 3 500 730
Top Link Assemblies-BE-TLA-004/13 1 - 2 380 M27 X 3 500 740
Top Link Assemblies-BE-TLA-004/14 2 - 2 380 M27 X 3 500 750
Top Link Assemblies-BE-TLA-004/15 1 - 1 400 M27 X 3 520 750
Top Link Assemblies-BE-TLA-004/16 1 - 2 400 M27 X 3 520 760
Top Link Assemblies-BE-TLA-004/17 2 - 2 400 M27 X 3 520 770
Top Link Assemblies-BE-TLA-004/18 1 - 1 430 M27 X 3 550 780
Top Link Assemblies-BE-TLA-004/19 1 - 2 430 M27 X 3 550 790
Top Link Assemblies-BE-TLA-004/20 2 - 2 430 M27 X 3 550 800
Top Link Assemblies-BE-TLA-004/21 1 - 1 450 M27 X 3 570 800
Top Link Assemblies-BE-TLA-004/22 1 - 2 450 M27 X 3 570 810
Top Link Assemblies-BE-TLA-004/23 2 - 2 450 M27 X 3 570 820
Top Link Assemblies-BE-TLA-004/24 1 - 1 470 M27 X 3 590 820
Top Link Assemblies-BE-TLA-004/25 1 - 2 470 M27 X 3 590 830
Top Link Assemblies-BE-TLA-004/26 2 - 2 470 M27 X 3 590 840
Top Link Assemblies-BE-TLA-004/27 1 - 1 500 M27 X 3 620 850
Top Link Assemblies-BE-TLA-004/28 1 - 2 500 M27 X 3 620 860
Top Link Assemblies-BE-TLA-004/29 2 - 2 500 M27 X 3 620 870
Top Link Assemblies-BE-TLA-004/30 2 - 2 550 M27 X 3 670 920
Top Link Assemblies-BE-TLA-004/31 2 - 2 570 M27 X 3 690 940

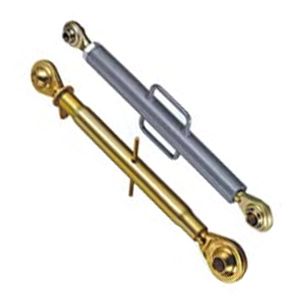

Top Link Assemblies-BE-TLA-005

Top Link Assemblies
Enlrage View / Detail

Top Link Assemblies

Top Link Assemblies

Braccio 3 Punto Completo - THREAD M30 X 3

technical spacification
CODE CAT-D1-D2 PIPE L1 THREAD MIN MAX
Top Link Assemblies-BE-TLA-005/1 1 - 1 370 M30 X 3 500 720
Top Link Assemblies-BE-TLA-005/2 1 - 2 370 M30 X 3 500 730
Top Link Assemblies-BE-TLA-005/3 2 - 2 370 M30 X 3 500 740
Top Link Assemblies-BE-TLA-005/4 1 - 1 400 M30 X 3 530 750
Top Link Assemblies-BE-TLA-005/5 1 - 2 400 M30 X 3 530 760
Top Link Assemblies-BE-TLA-005/6 2 - 2 400 M30 X 3 530 770
Top Link Assemblies-BE-TLA-005/7 1 - 1 450 M30 X 3 580 800
Top Link Assemblies-BE-TLA-005/8 1 - 2 450 M30 X 3 580 810
Top Link Assemblies-BE-TLA-005/9 2 - 2 450 M30 X 3 580 820
Top Link Assemblies-BE-TLA-005/10 2 - 2 460 M30 X 3 590 830
Top Link Assemblies-BE-TLA-005/11 1 - 1 500 M30 X 3 630 850
Top Link Assemblies-BE-TLA-005/12 1 - 2 500 M30 X 3 630 860
Top Link Assemblies-BE-TLA-005/13 2 - 2 500 M30 X 3 630 880
Top Link Assemblies-BE-TLA-005/14 2 - 2 520 M30 X 3 650 900
Top Link Assemblies-BE-TLA-005/15 2 – 2 550 M30 X 3 650 930
Top Link Assemblies-BE-TLA-005/16 2 - 2 560 M30 X 3 690 940
Top Link Assemblies-BE-TLA-005/17 2 - 2 600 M30 X 3 730 980
Top Link Assemblies-BE-TLA-005/18 2 - 2 650 M30 X 3 780 1030
Top Link Assemblies-BE-TLA-005/19 2 - 2 700 M30 X 3 830 1080
Top Link Assemblies-BE-TLA-005/20 2 - 2 720 M30 X 3 880 1100

Top Link Assemblies-BE-TLA-006

Top Link End (Unc)
Enlrage View / Detail

Top Link End (Unc)

Top Link End (Unc)

Top Link End (Unc) - Tiranti Filettati Con Rotula Sferica

technical spacification
CODE CAT ID THREAD L1 D1 D2 H
Top Link Assemblies-BE-TLA-006/1 0 16 3 / 4 UNCR 105 47 30 25.4
Top Link Assemblies-BE-TLA-006/2 0 16 3 / 4 UNCL 105 47 30 25.4
Top Link Assemblies-BE-TLA-006/3 1 19 1.1/8 UNCR 155 58 53 44
Top Link Assemblies-BE-TLA-006/4 1 19 1.1/8 UNCL 155 58 53 44
Top Link Assemblies-BE-TLA-006/5 2 25.4 1.1/8 UNCR 190 66 58 51
Top Link Assemblies-BE-TLA-006/6 2 25.4 1.1/8 UNCL 190 66 58 51
Top Link Assemblies-BE-TLA-006/7 2 25.4 1.1/8 UNCR 180 76 66 51
Top Link Assemblies-BE-TLA-006/8 2 25.4 1.1/8 UNCL 180 76 66 51

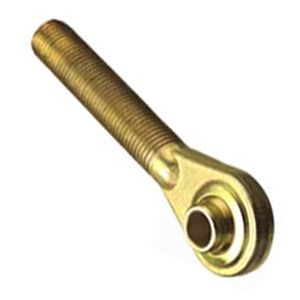

Top Link Assemblies-BE-TLA-007

Top Link End (MM)
Enlrage View / Detail

Top Link End (MM)

Top Link End (MM)

Top Link End (MM) - Tiranti Filettati Con Rotula

technical spacification
CODE CAT ID THREAD L1 D1 D2 H
Top Link Assemblies-BE-TLA-007/1 2 25.4 M27 X 3R 190 56 66 51
Top Link Assemblies-BE-TLA-007/2 2 25.4 M27 X 3L 190 56 66 51
Top Link Assemblies-BE-TLA-007/3 2 25.4 M27 X 3R 190 56 66 42
Top Link Assemblies-BE-TLA-007/4 2 25.4 M27 X 3L 190 56 66 42
Top Link Assemblies-BE-TLA-007/5 2 25.4 M30 X 3.5R 75 56 75 51
Top Link Assemblies-BE-TLA-007/6 2 25.4 M30 X 3.5L 75 56 75 51
