Bharti ExportsAgricultureTractor / Farm PartsLevelling /Stabilizer Arms/Draw Bar

Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-010

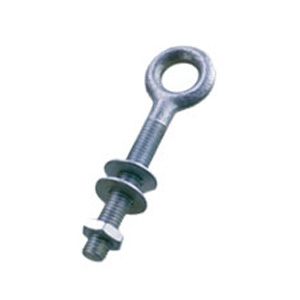

Eye End

Enlrage View / Detail

Eye End

Eye End

technical spacification
CODE	A	B	C	D	E
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-010/1	1 / 4"	1 - 1/2"	2"	3"	1 / 2"
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-010/2	5 / 16"	1 - 1/2"	2 - 1/4"	3 - 1/2"	5 / 8"
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-010/3	3 / 8"	1 - 1/2"	2 - 1/2"	4"	3 /4"
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-010/4	1 / 2"	1 - 1/2"	3 - 1/4"	5 - 1/4"	1"
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-010/5	6 / 8"	1 - 3/4"	4"	6 - 1/2"	1 - 1/4"
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-010/6	1 / 4"	2 - 1/2"	4"	5"	1 / 2"
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-010/7	5 / 16"	2 - 1/2"	4 - 1/4"	5 - 1/2"	5 / 8"
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-010/8	3 / 8"	2 - 1/2"	6"	7 - 1/2"	3 / 4"
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-010/9	1 / 2"	3	6"	7 - 3/4"	1"

Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-011

Turn Buckle

Enlrage View / Detail

Turn Buckle

Turn Buckle - Manicotto In Ghisa Per Catene Tipo Fiat

technical spacification
CODE	THREAD	PIPE LENGTH
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-011	M16 x 2	172

Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-012

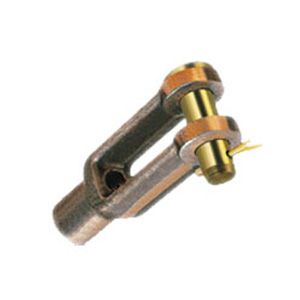

Clevis Yoke

Enlrage View / Detail

Clevis Yoke

Clevis Yoke

Sorry no Description Available......!

Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013

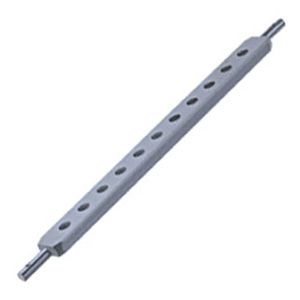

Draw Bas

Enlrage View / Detail

Draw Bas

Draw Bas (63 x 30) - Barre Di Traino

technical spacification
CODE	H	G	HOLES	A	B	C	D	E	F
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/1	63	30	7	1003	60	181	80	28.5	25.4
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/2	63	30	7	683	49	113	54	22	20
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/3	63	30	9	758	49	114	54	22	20
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/4	63	30	9	781	60	114	54	28.5	20
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/5	63	30	7	962	60	181	80	28.5	28
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/6	63	30	9	796	57.5	125	55	21.6	22.2
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/7	63	30	9	800	70	113.3	54	28	22
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/8	63	30	11	766	60	60	54	28	20
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/9	63	30	11	945	60	114	60	28	22
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/10	63	30	9	800	58	118	22	22	22
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/11	63	30	9	800	126	51	70	28	22
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/12	63	30	11	765	52	60	54	22	22
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/13	63	30	11	781	60	60	54	28	22
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/14	63	30	9	770	55	110	55	22	20
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/15	63	30	9	770	55	110	55	28	20
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/16	63	30	3	440	55	110	55	22	20
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/17	63	30	11	766	53	60	54	22	20
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/18	63	30	11	780	60	60	54	28	20
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/19	63	30	3	440	57	110	54	22	19
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/20	63	30	9	800	70	114	54	28	22
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/21	63	30	11	810	60	75	54	28.5	20
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-013/22	63	30	9	620	50	71	47.5	22	26

Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-014

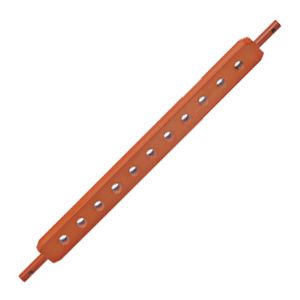

Draw Bar

Enlrage View / Detail

Draw Bar

Draw Bar (80 x 40) - Barre Di Traino

technical spacification
CODE	H	G	HOLES	A	B	C	D	E	F
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-014/1	80	40	7	930	55	110	100	28	28
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-014/2	80	40	7	770	56	16.5	16.6	28	26.5
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-014/3	80	40	7	861	60.3	122	83	28	26.5
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-014/4	80	40	7	1085	60	151	110	36	32
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-014/5	80	40	7	940	80	121	83	28.4	26

Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-015

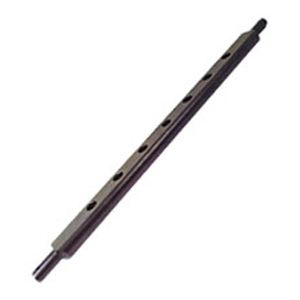

Draw Bar

Enlrage View / Detail

Draw Bar

Draw Bar (70 x 30) - Barre Di Traino

technical spacification
CODE	H	G	HOLES	A	B	C	D	E	F
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-015/1	70	30	1	770	54.8	329	N.A	27.8	26
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-015/2	70	30	3	772	54.8	163	165.2	27.8	26
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-015/3	70	30	3	674	55	139.5	140	28	22.7
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-015/4	70	30	3	900	55	197.35	197.5	28.4	28.5
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-015/5	70	30	3	960	55	212.5	212.5	28.4	28.5
Levelling /Stabilizer Arms/Draw Bar-BE-L/SA/DB-015/6	70	30	11	960	55	155	155	28	26
