Bharti Exports - Agriculture - Agri Tools

Follow @_BhartiExports

Bharti ExportsAgricultureAgri ToolsHoe

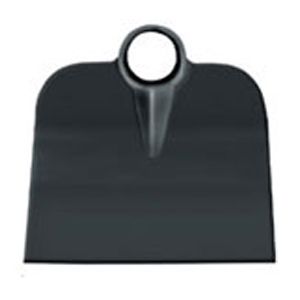

Hoe-BE-H-019

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 & Rc. Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-019/1	24	13.69	0.025	190	190	38	540
Hoe-BE-H-019/2	24	15.88	0.025	195	200	38	620

Hoe-BE-H-020

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 & Rc. Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-020/1	24	22.12	0.025	237	215	48	880
Hoe-BE-H-020/1	24	26.92	0.030	260	240	48	1090
Hoe-BE-H-020/1	24	39.64	0.050	295	287	48	1610
Hoe-BE-H-020/1	24	44.20	0.055	334	314	48	1800

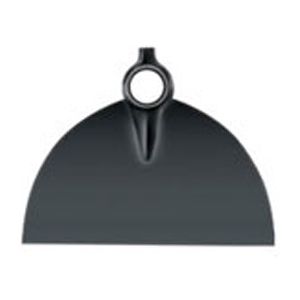

Hoe-BE-H-021

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 & Rc. Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-021/1	24	18.52	0.030	220	256	38	730
Hoe-BE-H-021/1	24	19.48	0.030	230	276	38	770
Hoe-BE-H-021/1	24	23.08	0.030	240	296	38	920
Hoe-BE-H-021/1	24	25.24	0.035	250	316	38	1010

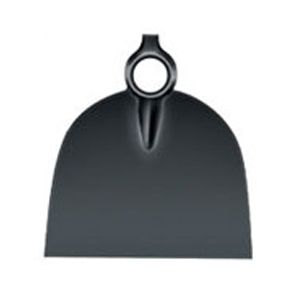

Hoe-BE-H-022

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 & Rc. Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-022/1	24	19.24	0.025	225	215	38	760
Hoe-BE-H-022/1	24	19.48	0.030	240	225	38	770
Hoe-BE-H-022/1	24	21.16	0.030	250	235	38	640
Hoe-BE-H-022/1	24	24.76	0.040	270	245	38	990

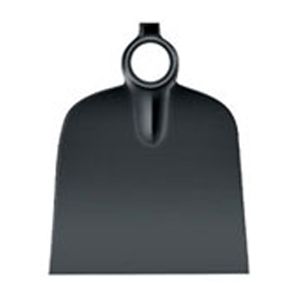

Hoe-BE-H-023

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 & Rc. Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-023/1	24	20.68	0.020	250	190	38	820
Hoe-BE-H-023/1	24	22.60	0.025	260	200	38	900
Hoe-BE-H-023/1	24	24.76	0.030	270	210	38	990
Hoe-BE-H-023/1	24	25.72	0.035	280	220	38	1030

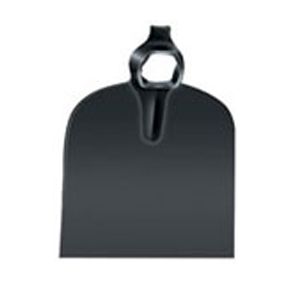

Hoe-BE-H-024

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 & Rc. Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-024/1	24	20.68	0.020	245	190	38	820
Hoe-BE-H-024/1	24	22.60	0.025	255	200	38	900
Hoe-BE-H-024/1	24	24.76	0.030	265	210	38	990
Hoe-BE-H-024/1	24	25.72	0.035	275	220	38	1030

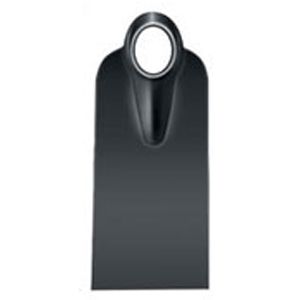

Hoe-BE-H-025

Stamped Hoe

Enlrage View / Detail

Stamped Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 & Rc. Oval eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
	UN.	Gr. Kg.	m3
Hoe-BE-H-025	24	16.18	0.015	247	105	42 x 32	660

Hoe-BE-H-026

Stamped Hoe

Enlrage View / Detail

Stamped Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. with Round eye & Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
	UN.	Gr. Kg.	m3
Hoe-BE-H-026	24	16.60	0.015	225	115	38	650

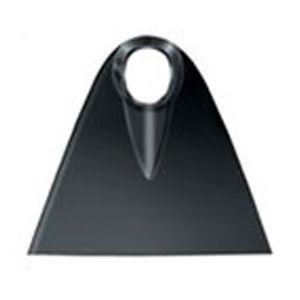

Hoe-BE-H-027

Stamped Hoe

Enlrage View / Detail

Stamped Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. with Round eye & Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-027/1	24	11.08	0.015	178	170	38	420
Hoe-BE-H-027/2	24	13.00	0.020	190	205	38	500
