Eye Specification-BE-ES-001

Eye Specification

Enlrage View / Detail

Eye Specification

Eye Specification

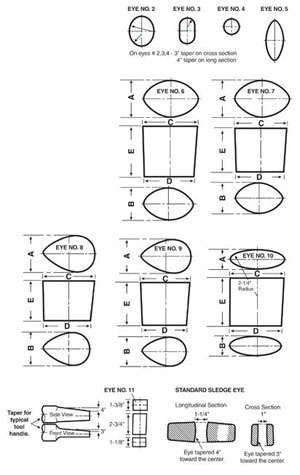

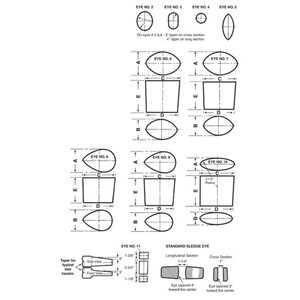

Eye Size	A		B		C		D		E
Eye Size	inch.	mm.	inch.	mm.	inch.	mm.	inch.	mm.	inch.	mm.
No. 6	2	50.80	1 3/4	44.45	3	76.20	2 3/4	69.85	2 3/4	69.85
No. 7	1 3/4	44.45	1 2/2	38.10	2 3/4	69.85	2 1/2	63.50	2 1/4	57.15
No. 8	2	50.80	1 7/8	47.63	3	76.20	2 5/8	66.68	2 1/4	57.15
No. 9	1 7/8	47.63	1 5/8	41.28	2 1/2	63.50	2 1/4	57.15	2 1/8	53.97
No. 10	1	25.40	15/16	23.81	3	76.20	2 3/4	69.85	2 1/2	63.50

Pick Axe

Pick Axe-BE-PA-001

5 LB Railroad

Enlrage View / Detail

5 LB Railroad

5 LB Railroad

5 LB RAILROAD OR CLAY PICK POINT AND CHISEL

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Oval eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Pick Axe-BE-PA-001/1	6	14.09	0.013	535	40	72 x 45	2265
Pick Axe-BE-PA-001/2	6	14.09	0.013	535	45	72 x 45	2265
Pick Axe-BE-PA-001/3	6	14.09	0.013	545	40	71 x 45	2265

Pick Axe-BE-PA-002

Round Eye Pick

Enlrage View / Detail

Round Eye Pick

Round Eye Pick

ROUND EYE PICK POINT AND CHISEL

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Round eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Pick Axe-BE-PA-002/1	6	12.50	0.013	500	45	45	2000
Pick Axe-BE-PA-002/2	6	14.09	0.015	530	50	40	2265
Pick Axe-BE-PA-002/3	6	15.50	0.018	550	50	45	2500
Pick Axe-BE-PA-002/4	6	16.81	0.020	550	60	40	2718
Pick Axe-BE-PA-002/5	6	18.50	0.025	530	60	40	3000

Pick Axe-BE-PA-003

5 LB Pick Mattock

Enlrage View / Detail

5 LB Pick Mattock

5 LB Pick Mattock

5 LB PICK MATTOCK BLADE AND POINT

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Oval eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Pick Axe-BE-PA-003/1	6	14.09	0.013	470	88	70 x 45	2265
Pick Axe-BE-PA-003/2	6	14.09	0.013	470	95	70 x 45	2265
Pick Axe-BE-PA-003/3	6	14.09	0.015	470	104	70 x 45	2265
Pick Axe-BE-PA-003/4	6	14.09	0.018	450	110	67 x 43	2265
