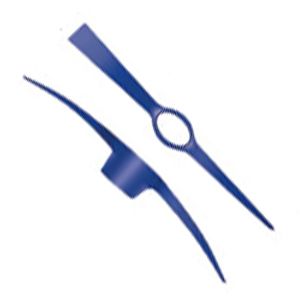

Pick Axe-BE-PA-001

5 LB Railroad

Enlrage View / Detail

5 LB Railroad

5 LB RAILROAD OR CLAY PICK POINT AND CHISEL

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Oval eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Pick Axe-BE-PA-001/1	6	14.09	0.013	535	40	72 x 45	2265
Pick Axe-BE-PA-001/2	6	14.09	0.013	535	45	72 x 45	2265
Pick Axe-BE-PA-001/3	6	14.09	0.013	545	40	71 x 45	2265

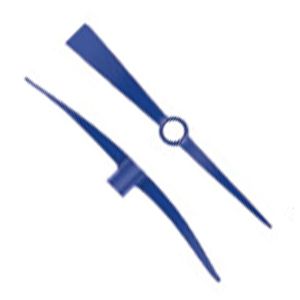

Pick Axe-BE-PA-002

Round Eye Pick

Enlrage View / Detail

Round Eye Pick

ROUND EYE PICK POINT AND CHISEL

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Round eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Pick Axe-BE-PA-002/1	6	12.50	0.013	500	45	45	2000
Pick Axe-BE-PA-002/2	6	14.09	0.015	530	50	40	2265
Pick Axe-BE-PA-002/3	6	15.50	0.018	550	50	45	2500
Pick Axe-BE-PA-002/4	6	16.81	0.020	550	60	40	2718
Pick Axe-BE-PA-002/5	6	18.50	0.025	530	60	40	3000

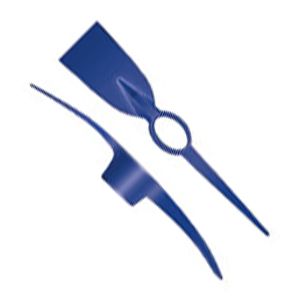

Pick Axe-BE-PA-003

5 LB Pick Mattock

Enlrage View / Detail

5 LB Pick Mattock

5 LB PICK MATTOCK BLADE AND POINT

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Oval eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Pick Axe-BE-PA-003/1	6	14.09	0.013	470	88	70 x 45	2265
Pick Axe-BE-PA-003/2	6	14.09	0.013	470	95	70 x 45	2265
Pick Axe-BE-PA-003/3	6	14.09	0.015	470	104	70 x 45	2265
Pick Axe-BE-PA-003/4	6	14.09	0.018	450	110	67 x 43	2265

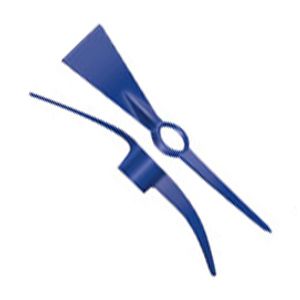

Pick Axe-BE-PA-004

6 LB Pick Mattock

Enlrage View / Detail

6 LB Pick Mattock

6 LB PICK MATTOCK BLADE AND POINT CURVA

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Oval eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
	UN.	Gr. Kg.	m3
Pick Axe-BE-PA-004	6	16.81	0.017	560	112	70 x 45	2718

Pick Axe-BE-PA-005

5 LB Cutter Mattock

Enlrage View / Detail

5 LB Cutter Mattock

5 LB CUTTER MATTOCK BLADE AND CUTTER

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Oval eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Pick Axe-BE-PA-005/1	6	14.09	0.010	415	86	70 x 45	2265
Pick Axe-BE-PA-005/2	6	14.09	0.010	415	95	70 x 45	2265

Pick Axe-BE-PA-006

5/6/7 LB Railroad

Enlrage View / Detail

5/6/7 LB Railroad

5/6/7 LB RAILROAD OR CLAY PICK POINT AND CHISEL

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Oval eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Pick Axe-BE-PA-006/1	6	14.09	0.013	535	40	70 x 45	2265
Pick Axe-BE-PA-006/2	6	14.09	0.013	535	34	70 x 45	2265
Pick Axe-BE-PA-006/3	6	16.80	0.015	570	36	70 x 45	2718
Pick Axe-BE-PA-006/4	6	19.53	0.020	634	38	70 x 45	3171

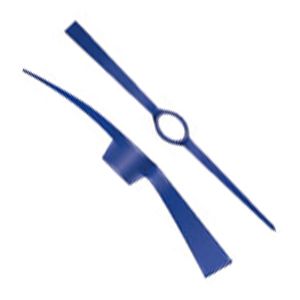

Pick Axe-BE-PA-007

7 LB Cross chisel Pick

Enlrage View / Detail

7 LB Cross chisel Pick

7 LB CROSS CHISEL PICK

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Oval eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
	UN.	Gr. Kg.	m3
Pick Axe-BE-PA-007	6	19.53	0.017	550	62	70 x 45	3171

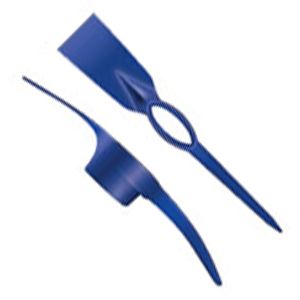

Pick Axe-BE-PA-008

2.5 / 3 LBS Pick Mattock

Enlrage View / Detail

2.5 / 3 LBS Pick Mattock

2.5 / 3 LBS PICK MATTOCK BLADE AND POINT

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Oval eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Pick Axe-BE-PA-008/1	6	7.30	0.011	391	70	71 x 24	1133
Pick Axe-BE-PA-008/2	6	8.65	0.012	411	75	63.5 x 38	1359

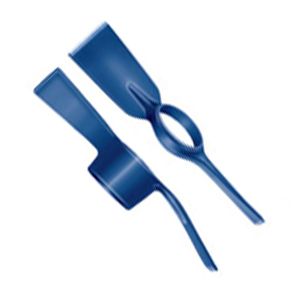

Pick Axe-BE-PA-009

2.5 / 3 LBS Cutter Mattock

Enlrage View / Detail

2.5 / 3 LBS Cutter Mattock

2.5 / 3 LBS CUTTER MATTOCK BLADE AND CUTTER

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Oval eye with Painted blue.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Pick Axe-BE-PA-009/1	6	7.30	0.008	350	70	71 x 24	1133
Pick Axe-BE-PA-009/2	6	8.65	0.010	347	75	63.5 x 38	1359
