Bharti ExportsAgricultureAgri ToolsHoe

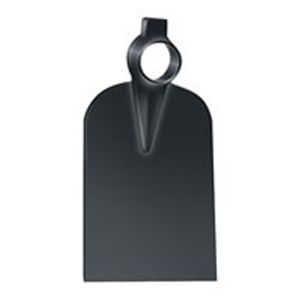

Hoe-BE-H-010

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-010/1	24	25.48	0.015	268	130	38	1020
Hoe-BE-H-010/2	24	26.92	0.020	278	140	38	1080
Hoe-BE-H-010/3	24	29.32	0.025	288	150	38	1180

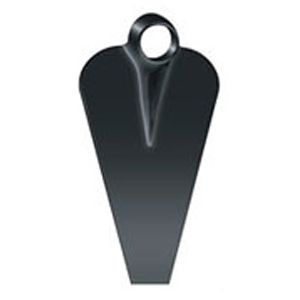

Hoe-BE-H-011

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
	UN.	Gr. Kg.	m3
Hoe-BE-H-011	24	22.12	0.025	288	156	42	880

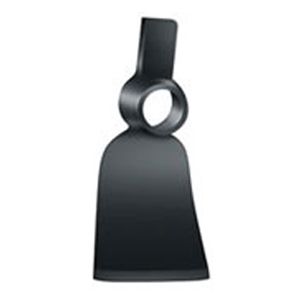

Hoe-BE-H-012

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
	UN.	Gr. Kg.	m3
Hoe-BE-H-012	24	16.36	0.015	190	87	29	640

Hoe-BE-H-013

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-013/1	24	22.10	0.026	215	200	38	900
Hoe-BE-H-013/2	24	25.00	0.030	234	200	38	1000

Hoe-BE-H-014

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-014/1	24	21.40	0.010	180	140	38	850
Hoe-BE-H-014/2	24	23.80	0.015	190	145	38	950
Hoe-BE-H-014/3	24	25.00	0.015	190	155	38	1000
Hoe-BE-H-014/4	24	28.17	0.020	200	160	38	1032
Hoe-BE-H-014/5	24	29.30	0.014	210	180	38	1200

Hoe-BE-H-015

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-015/1	24	11.80	0.015	180	153	38	450
Hoe-BE-H-015/2	24	14.20	0.015	197	187	38	550
Hoe-BE-H-015/3	24	14.92	0.015	200	200	38	580
Hoe-BE-H-015/4	24	17.32	0.020	204	205	38	680

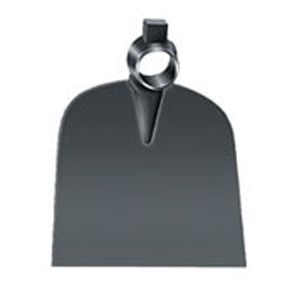

Hoe-BE-H-016

Forged Hoe

Enlrage View / Detail

Forged Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 Rc. & Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
	UN.	Gr. Kg.	m3
Hoe-BE-H-016	24	28.36	0.030	225	302	38	1140

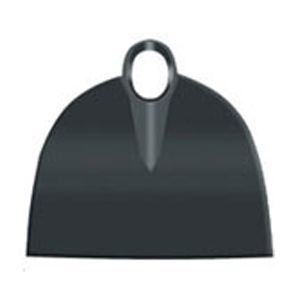

Hoe-BE-H-017

Stamped Hoe

Enlrage View / Detail

Stamped Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 & Rc. Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-017/1	24	17.32	0.030	200	220	42 x 32	680
Hoe-BE-H-017/2	24	18.04	0.030	205	227	42 x 32	710
Hoe-BE-H-017/3	24	18.76	0.030	218	235	42 x 32	740

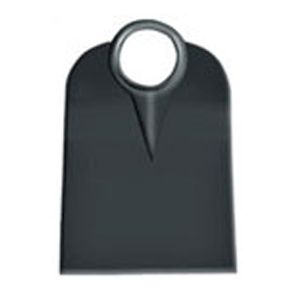

Hoe-BE-H-018

Stamped Hoe

Enlrage View / Detail

Stamped Hoe

SAE 1045 Steel equivalent, Hardness : 32 to 38 & Rc. Round eye with Painted black.

REF	PKG.			A mm	B mm	EYEØ	WT gms.
REF	UN.	Gr. Kg.	m3	A mm	B mm	EYEØ	WT gms.
Hoe-BE-H-018/1	24	24.28	0.015	231	164	48	970
Hoe-BE-H-018/2	24	30.04	0.020	245	177	48	1210
