Bharti ExportsAgricultureSteel ClampsL Screw
L Screw-BE-LS-001

Stainless Steel
Enlrage View / Detail

Stainless Steel

Stainless Steel

Stainless Steel L-Screw


Stainless Steel L-Screw

L Screw-BE-LS-002

Yellow Zinc Plated
Enlrage View / Detail

Yellow Zinc Plated

Yellow Zinc Plated

Yellow Zinc Plated L-Screw


Stainless Steel L-Screw

Timber Connectors
Timber Connectors-BE-TC-001

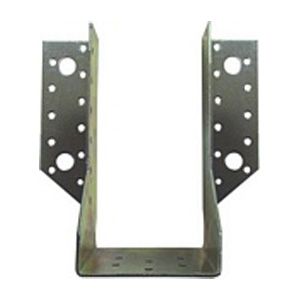

Joist Hanger
Enlrage View / Detail

Joist Hanger

Joist Hanger

Joist Hanger

technical spacification
CODE A B C D
Timber Connectors-BE-TC-001/1 210 32 89 2
Timber Connectors-BE-TC-001/2 260 36 112 2
Timber Connectors-BE-TC-001/3 250 38 106 2
Timber Connectors-BE-TC-001/4 340 38 151 2
Timber Connectors-BE-TC-001/5 240 40 100 2
Timber Connectors-BE-TC-001/6 260 40 110 2
Timber Connectors-BE-TC-001/7 220 46 87 2
Timber Connectors-BE-TC-001/8 260 46 107 2
Timber Connectors-BE-TC-001/9 340 46 147 2
Timber Connectors-BE-TC-001/0 380 46 167 2
Timber Connectors-BE-TC-001/11 250 50 100 2
Timber Connectors-BE-TC-001/12 260 50 105 2
Timber Connectors-BE-TC-001/13 320 50 135 2
Timber Connectors-BE-TC-001/14 340 50 145 2
Timber Connectors-BE-TC-001/15 380 50 165 2
Timber Connectors-BE-TC-001/16 340 59 140 2
Timber Connectors-BE-TC-001/17 380 59 160 2
Timber Connectors-BE-TC-001/18 260 60 100 2
Timber Connectors-BE-TC-001/19 340 63 138 2
Timber Connectors-BE-TC-001/20 380 63 158 2
Timber Connectors-BE-TC-001/21 440 63 188 2
Timber Connectors-BE-TC-001/22 380 71 154 2
Timber Connectors-BE-TC-001/23 440 71 184 2
Timber Connectors-BE-TC-001/24 500 71 214 2
Timber Connectors-BE-TC-001/25 380 75 152 2
Timber Connectors-BE-TC-001/26 440 75 182 2
Timber Connectors-BE-TC-001/27 500 75 212 2
Timber Connectors-BE-TC-001/28 320 80 120 2
Timber Connectors-BE-TC-001/29 440 80 180 2
Timber Connectors-BE-TC-001/30 440 90 175 2
Timber Connectors-BE-TC-001/31 380 100 140 2
Timber Connectors-BE-TC-001/32 500 100 200 2
Timber Connectors-BE-TC-001/33 440 120 160 2
Timber Connectors-BE-TC-001/34 480 120 180 2
Timber Connectors-BE-TC-001/35 500 140 180 2
Timber Connectors-BE-TC-001/36 500 150 175 2

Timber Connectors-BE-TC-002

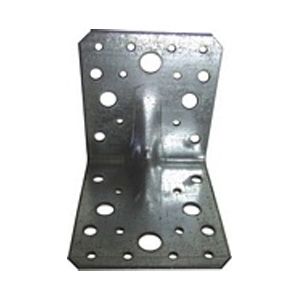

Reinforced Square
Enlrage View / Detail

Reinforced Square

Reinforced Square

Reinforced Square

technical spacification
CODE A B C D
Timber Connectors-BE-TC-002/1 70 70 55 2.5
Timber Connectors-BE-TC-002/2 90 90 60 2.5
Timber Connectors-BE-TC-002/3 105 105 90 2.5
Timber Connectors-BE-TC-002/4 125 125 45 2.5
Timber Connectors-BE-TC-002/5 150 150 60 2.5

Timber Connectors-BE-TC-003

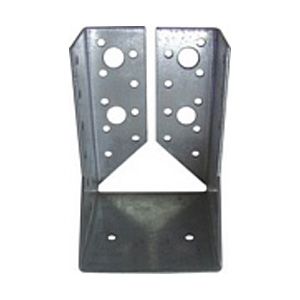

Folded Joist Hanger
Enlrage View / Detail

Folded Joist Hanger

Folded Joist Hanger

Folded Joist Hanger

technical spacification
CODE A B C D
Timber Connectors-BE-TC-003/1 260 46 107 2
Timber Connectors-BE-TC-003/2 320 50 135 2
Timber Connectors-BE-TC-003/3 260 60 100 2
Timber Connectors-BE-TC-003/4 340 63 138 2
Timber Connectors-BE-TC-003/5 380 75 152 2
Timber Connectors-BE-TC-003/6 320 80 120 2
Timber Connectors-BE-TC-003/7 440 80 180 2
Timber Connectors-BE-TC-003/8 380 100 140 2
Timber Connectors-BE-TC-003/9 500 100 200 2
